Special Note:

Do not use a data cable to connect the device to start it, this will cause insufficient voltage on the device's motherboard, leading to repeated restarts or failure to start, and is prone to damaging the device!

As electronic products have strict voltage requirements, please use our standard car charger for power supply. If we do not configure the charger, the device may not function normally. Please use our products correctly to avoid damage to the device caused by improper operation.

Please ask the customer to carefully read the accessories included in the main package picture before placing an order according to their needs. Please refer to the main images of each package for accuracy. (The items included in the SKU package are subject to the package photos)

About Carplay/Android auto connection:

(1) If it is an Apple phone, the DVR menu needs to select the Carplay connection method. The Carplay software installed on the Apple phone can directly connect to the DVR through the Carplay function.

(2) If it is an Android phone, the DVR menu needs to select Android Auto as the connection method, and then download the Android Auto software from the Google App Store to connect to the DVR (Note: You need to make sure to download the "Android Auto" software from the Google App Store. Downloading from other channels may not work.)

About WIFI connection:

Before connecting to the DVR on the phone, it is necessary to install the "Viidure" WIFI connection app in advance. You can search for "Viidure" installation in the Apple App Store or Google App Market.

Steps:

(1) Enter the DVR menu and enter the WIFl setup menu, turn on the WiFi function;

(2) In the DVR's wifi menu, check to get the wifi SSID name and password;

(3) Open the "Viidure" APP on your phone, enter the setup mode, turn on the phone's wifi function, follow the prompts to find the DVR's SSID wifi signal, and enter the password to connect;

(4) After successful setup, you can connect and operate the DVR through the "Viidure" APP.

Features and Specifications

●Model Number: B53P
●Installation Type: Portable Recorder
●Chipset: Novatek 96670
●Imaging Sensor: Sony IMX415
●Camera Lens: Front + Rear; 6 Glass + 4 Glass; 170-degree Angle + 140-degree Angle; F1.6 Aperture + F2.0 Aperture
●Video Resolution: Front: 3840 x 2160 @ 25 FPS; Rear: 1920*1080P@25FPS
●OSD Languages: English, Russian, Dutch, French, Spanish, Portuguese, German, Italian, Chinese, Japanese, Korean, Polish, Thai, Vietnamese, etc..... (You can change the desired language on the app)
●Memory Card: Micro SD Card, Class 10 and 16GB to 128GB (not included)
●Add Features: Night Vision Support, Wifi, GPS

Packing List

1 x Packaging Box
1 x DVR
1 x Electrostatic Sticker
1 x Car Charger
1 x User Manual
1 x Sony 1080P Night Vision Rear Camera with 6-meter Cable (optional)
1 x Hardwire Buck Line for 24-hour Parking Monitoring (optional)
1 x Real Class10 High-speed TF Card (optional)

Pay Attention

●About 24-hour monitoring:
The DVR is only compatible with cars that have a 12V power supply. A 24V power supply will burn the motherboard. If you want to use 24V, please add a 24V to 12V converter (BL).
●About video:
Our car DVR is a 4K FHD video recorder, it must use a high-quality Class 10 TF card. Any low-quality/low-speed TF card cannot support our DVRs to work normally. If you cannot ensure you have a good TF card, please buy our original TF card together.
● About the rear camera:
Since the chipset and camera sensor are different from other sellers, we only guarantee that our original rear camera can work well with our dashcam.

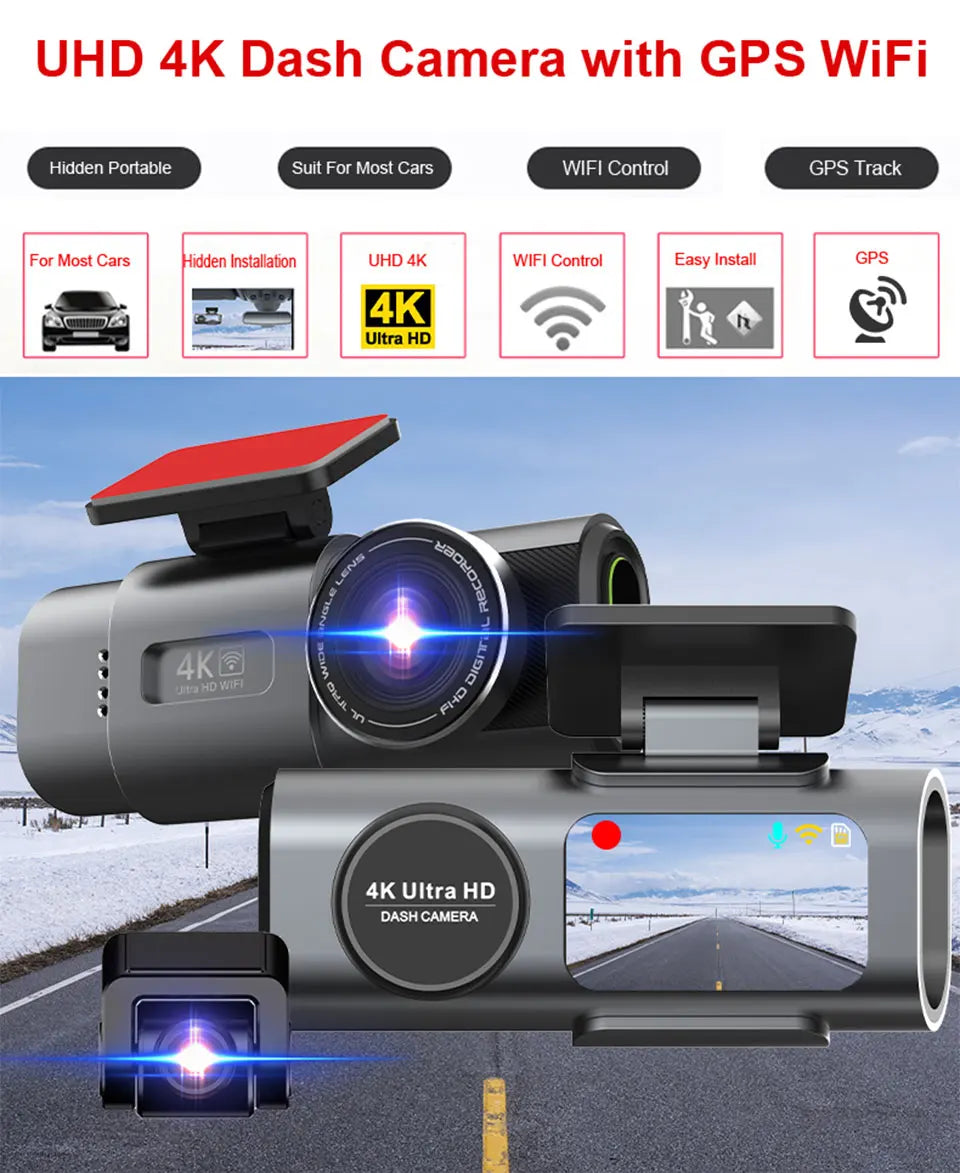

Main Features

Smart Chip

Based on the powerful Novatek 96670 processor, the dual lens simultaneously captures front and rear at 3840*2160@25fps+1920*1080P@25fps.

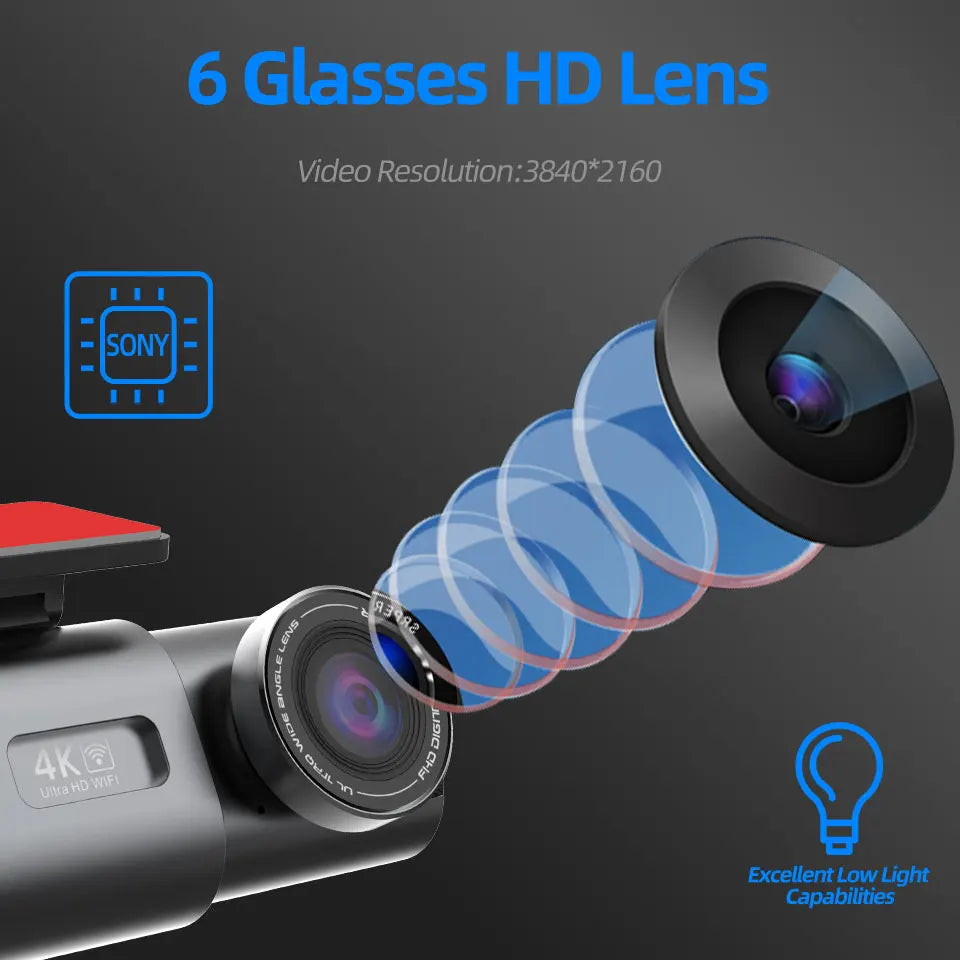

6-Glass Camera Lens

Thanks to revolutionary Super Night Vision technology, the car's dashcam can capture clearer videos and photos even in low-light night conditions. The largest available F/1.6 aperture + the 6-glass wide-angle lens with the exclusive lens focal length gives you clearer and more minute details.

Connect WIFI Control

You can control the DVR via your mobile phone connected through WiFi, such as video recording, overwriting recorded video files, taking photos, playback preview, settings, etc.

GPS Function

The GPS function is for recording the driving route location. We can see the speed and driving route on the computer using the provided player.

GPS Connection

When first connecting the GPS module, you need to wait for the GPS module to locate itself. Once positioning is successful, the GPS icon on the screen will change from red to green. After connecting to the mobile phone app, you can view the driving track.

Dual Lens Recording

170-degree front camera with 140-degree rear camera (optional) which allows for simultaneous video recording from two different angles. Two split views give you a clear view of both the front and rear cameras.

Rear Camera Versatility

You can install the rear lens on the rear windshield to record the car's rear view, or you can install the rear lens on the front windshield to record the car's interior view.

Use the Buck line so as not to occupy the cigarette lighter interface.
First, connect the negative pole (Wire kit) of the hardwire kit to the ground of the car's fuse box;
Second, if you want to continue monitoring after parking (the DVR works 24 hours), connect the positive pole (red line) of the Hardwire kit to the BAT interface of the car's fuse box;
If you want to stop monitoring after parking (the DVR does not work after parking), connect the positive pole of the Hardwire kit to the ACC interface of the fuse box.

Product Display

Packing List

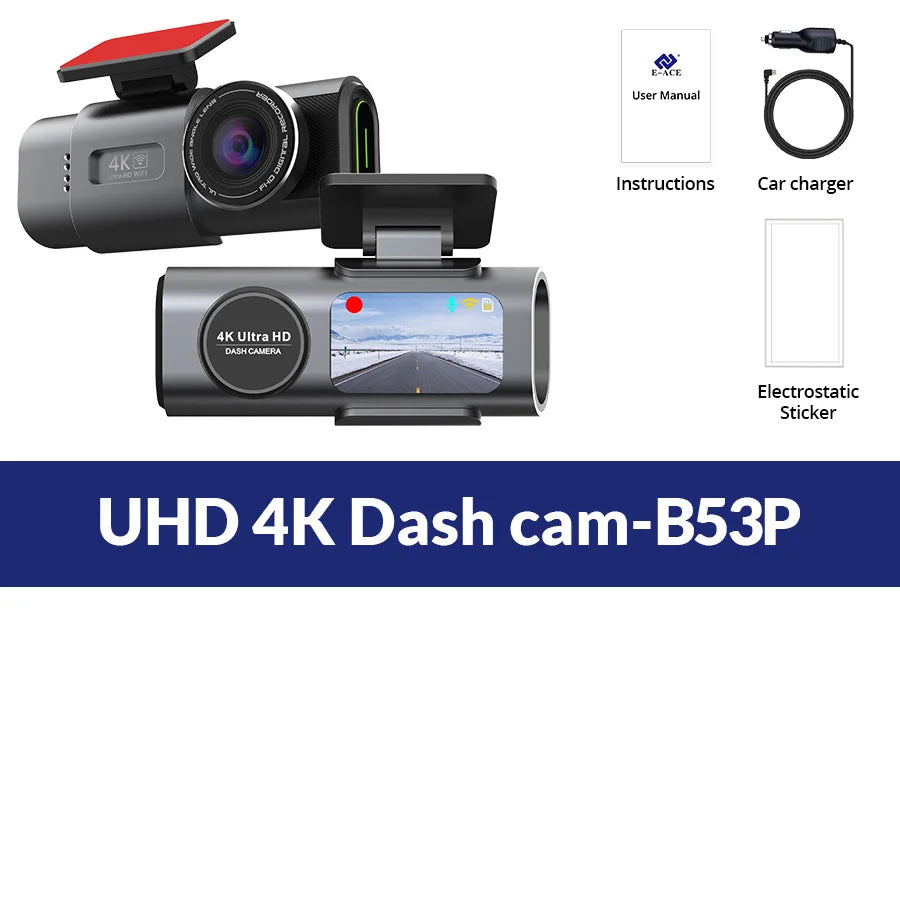

4K Dash Cam Only - B53P

-1 x 4K DVR (without rear view camera)
-1 x car charger
-1 x user manual
-1 x electrostatic sticker
-1 x USB card reader (gift)

B53-6M RC

-1 x 4K DVR (without rear view camera)
-1 x car charger
-1 x user manual
-1 x electrostatic sticker
-1 x USB card reader (gift)
-1 x 1080P rear view camera with 6-meter cable

B53-6M RC Kit

-1 x 4K DVR (without rear view camera)
-1 x car charger
-1 x user manual
-1 x electrostatic sticker
-1 x USB card reader (gift)
-1 x 1080P rear view camera with 6-meter cable
-1 x hardwire kit for 24H parking surveillance

About the installation of the rear camera
