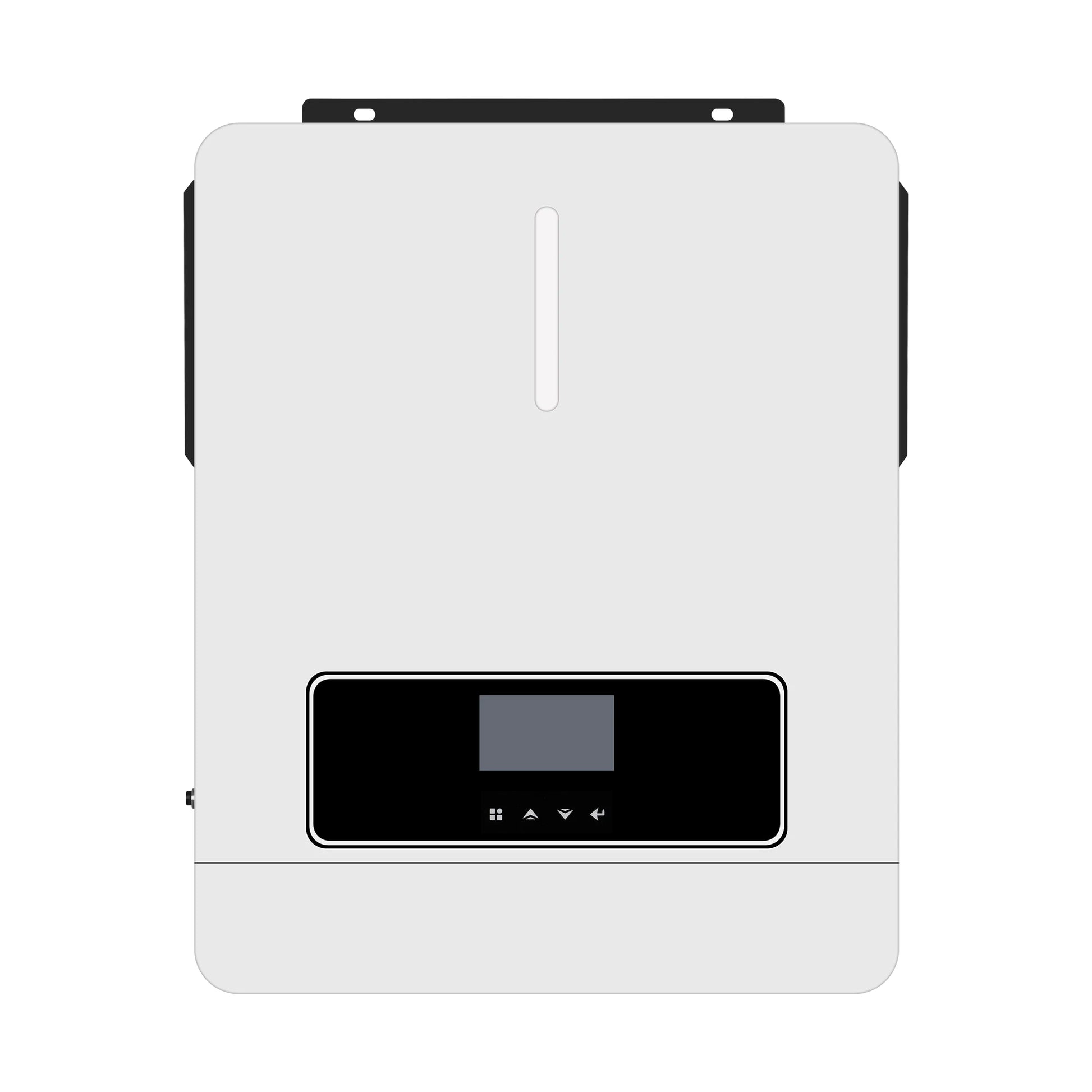

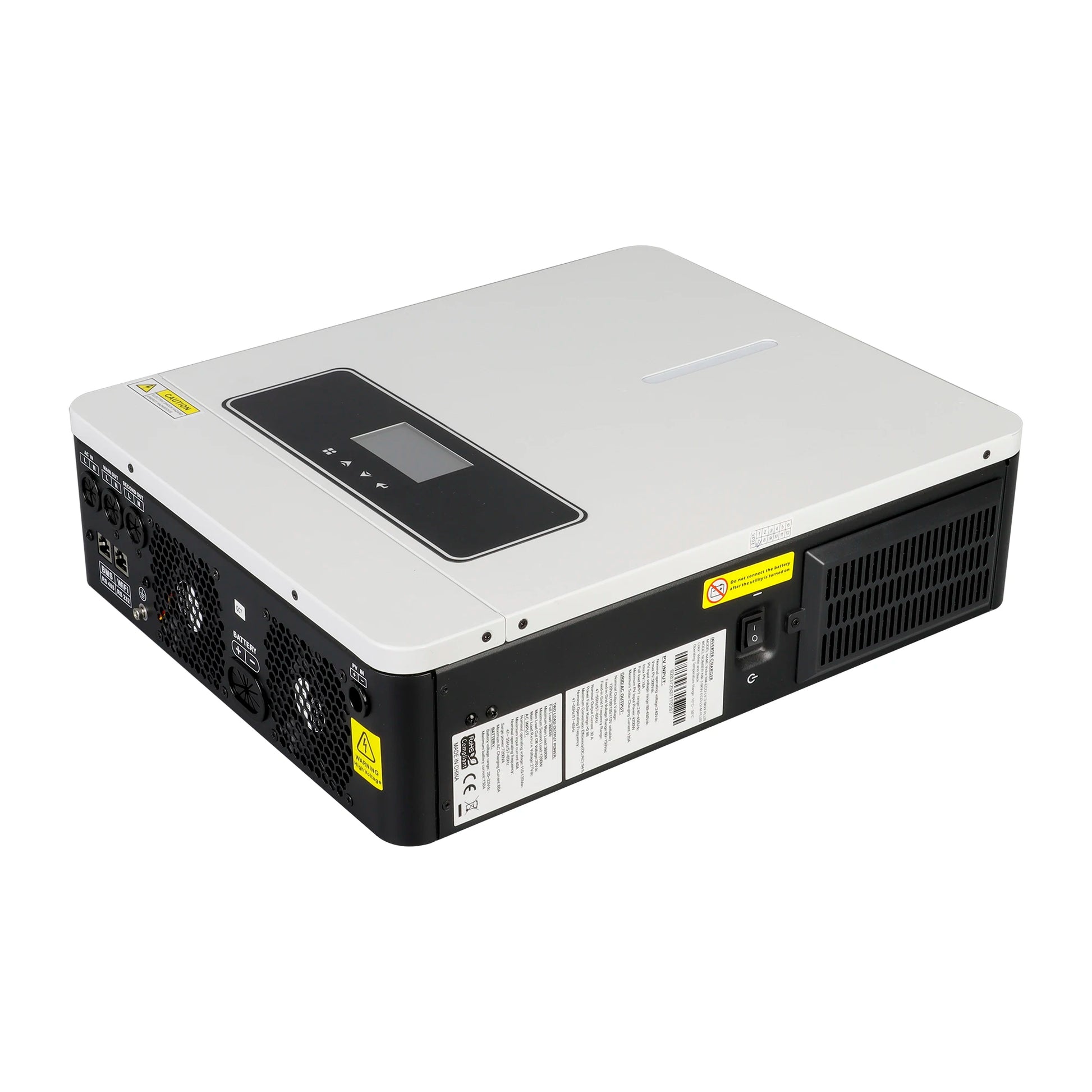

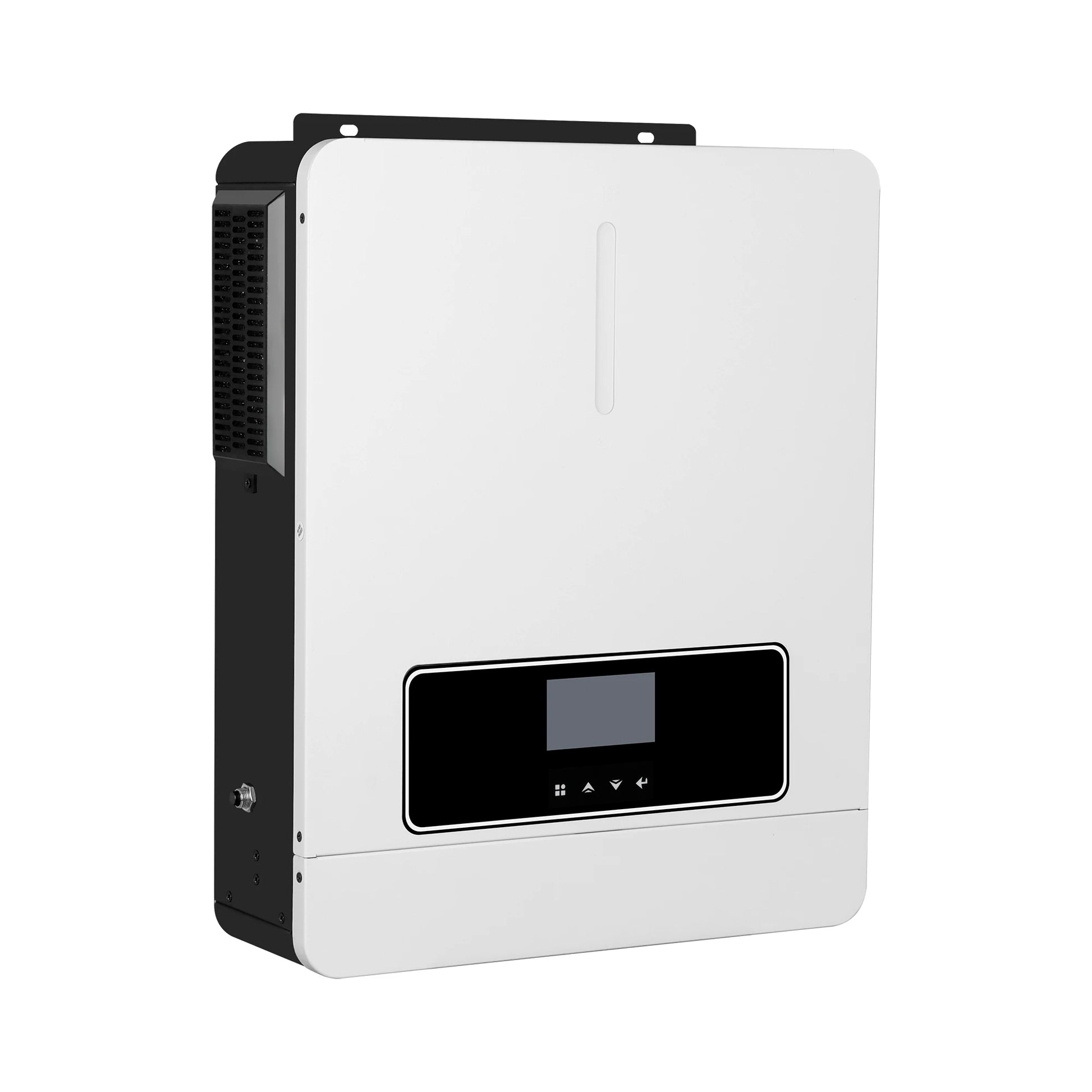

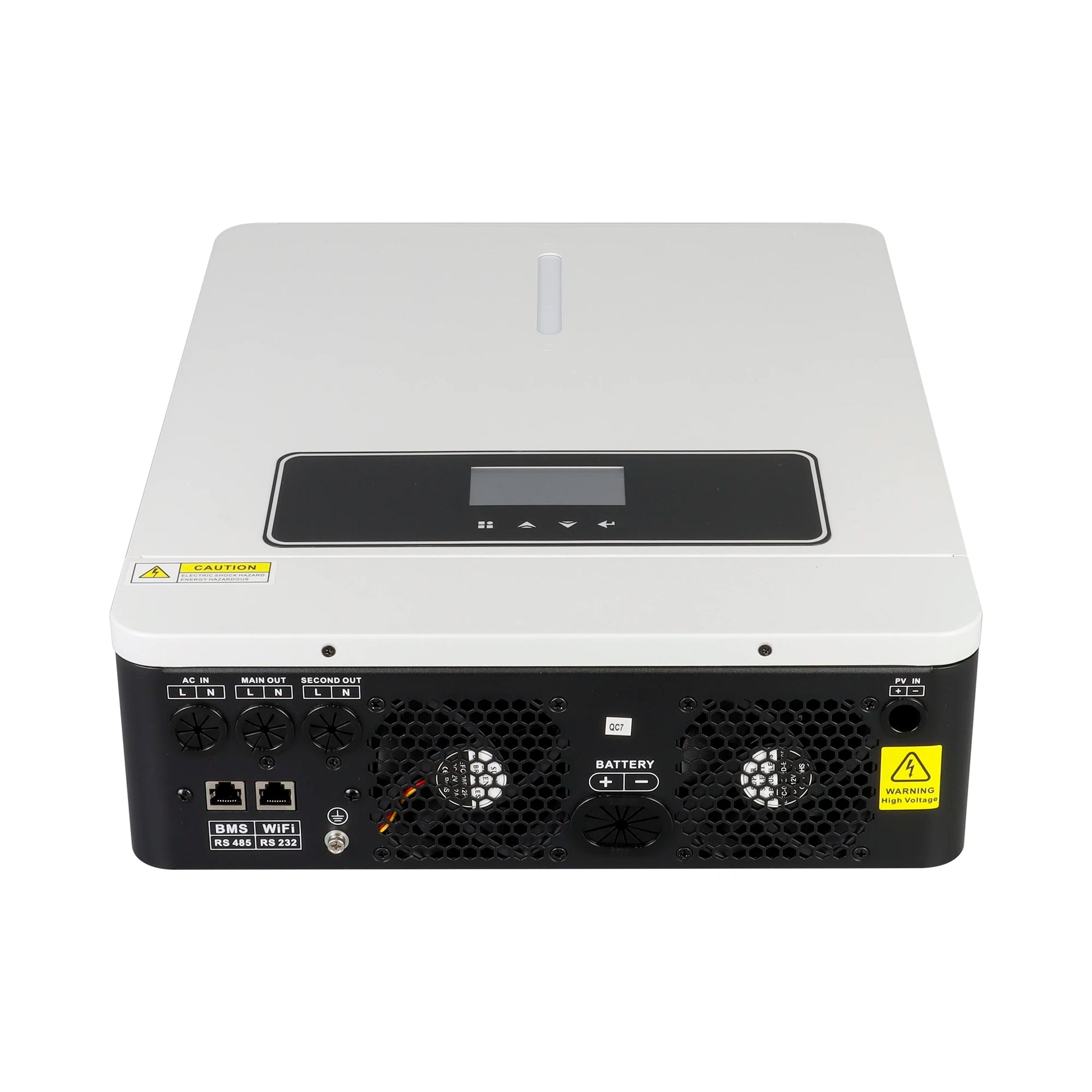

3600W 24V DC to 100/110/120V AC Hybrid Solar Inverter with 120A MPPT Solar Charger Controller Max PV 500Vdc Suitable for LifePo4 Battery

$551.00 USD

Sold out

Taxes included. Shipping calculated at checkout.

Color POW-3.6KW-WIFI POW-3.6KW

Output Voltage 100V 110V 120V

Shipped from United States Mexico

SPECIFICATIONS

Brand Name: PowMr

Certification: CE

High-concerned chemical: None

Is Smart Device: Yes

Item: 3.6KW hybird inversor

Max. PV Array Power: 4200W

Model Number: 3.6KW 24V

Nominal DC Input Voltage: 24Vdc

Origin: CN (Origin)

Output Frequency: 50Hz / 60Hz

Output Type: DOUBLE

Output Voltage Regulation: 100/105/110/115/120Vac

PV Array MPPT Voltage Range: 60Vdc~500Vdc

Warranty: 12 Months

3600W 24V Hybrid Solar Inverter DC to 100/110/120V AC with 120A MPPT Solar Charger Max PV 500Vdc Fit LifePo4 Battery

3.6KW 24V to 100V 110V 105V 120V output 120A MPPT solar charger

Inverter Features

1. Pure sine wave inverter

2. Configurable input voltage range for home appliances and personal computers via LCD setting

3. Configurable battery charging current based on applications via LCD setting

4. Configurable AC/solar charger priority via LCD setting

5. Compatible with mains voltage or generator power

6. Automatic restart during AC recovery

7. Overload/over-temperature/short circuit protection

8. Smart battery charger design for optimized battery performance

9. Cold start function

Inverter Specification

INVERTER MODEL	3.6KW 24V	6.2KW 48V
Input Voltage Waveform	Sine wave (utility or generator)
Nominal Input Voltage	100Vac
Max AC Input Voltage	150Vac
Rated Input Frequency	50 Hz / 60 Hz (Auto sensing)
Output Short Circuit Protection	Circuit breaker
Rated Output Power	3.6KW	6.2KW
Output Voltage Waveform	Pure sine wave
Output Voltage Regulation	100/105/110/115/120Vac
Output Frequency	50Hz / 60Hz
Maximum Efficiency	93%
Nominal DC Input Voltage	24 V DC	48 VDC
No Load Power Consumption	45W	50W
Dual-load Output Power
Full Load	3600W	6200W
Maximum Main Load	3600W	6200W
Maximum Second Load (Battery Model)	1200W	2066W
Main Load Cut-off Voltage	26 VDC	52 VDC
Main Load Return Voltage	27 VDC	54 VDC
MPPT Solar Charge Mode
Max.PV Generator Power	4200W	6500W
Nominal PV Voltage	240VDC	360VDC
PV Generator MPPT Voltage Range	60 VDC ~ 500 VDC
Max.PV Generator Open Circuit Voltage	500 VDC
Maximum Charging Current (AC Charger Plus Solar Charger)	120 A	120 A
Grid-Tie Operation
Nominal Output Voltage	100/105/110/115/120VAC
Utility Voltage Range	90 ~ 150VAC
Power Factor Range	>0.99
Maximum Conversion Efficiency (DC/AC)	97%
General Specifications
Safety Certification	CE
Operating temperature range	-10°C to 50°C
Storage temperature	-15°C ~ 60°C
Humidity	5% to 95% relative humidity (non-condensing)
